Form Type Knurling Tools - Single Die / Face Knurling Holders

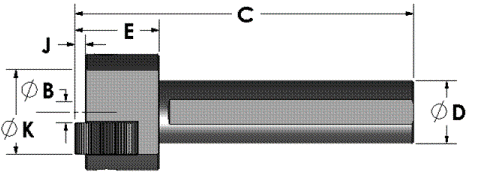

Tool#	Knurl	Pin	B	C	D	E	J	K	Price
H-FKP12A	KP	416C	.25	4.0	.75	1.00	.12	1.00	$95
H-FKP16A	KP	416C	.25	4.0	1.00	1.00	.12	1.00	$95
H-FPH16B	PH	820C	.50	4.5	1.00	1.50	.12	1.50	$120

Face knurling holders are suitable for knurling narrow bands. They may be shifted off center to vary the diameter of knurl band that is produced. At smaller diameters, or where appearance is critical, face holders may not be suitable because the knurl pitch must change as the diameter changes (knurling a wide face in narrow, separate bands will allow the tracking to correct itself). Conical holders (next page) should be used for more difficult applications. Carbide pin and hex wrench are included. Knurl is not included.
