Form Type Knurling Tools - Single Die / Round Shank Knurl Holders

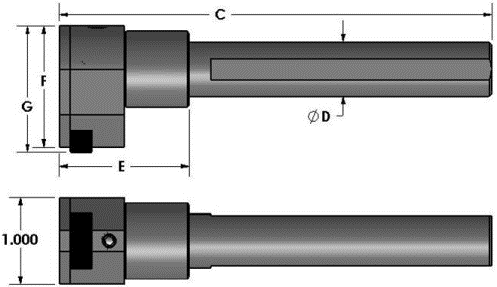

| Tool# | Knurl | Pin | C | D | E | F | G | Price |
| H-REP08 | EP | 208C | 5.0 | .500 | 1.5 | 1.4 | 1.3 | $90 |
| H-RGK10 | GK | 312C | 5.0 | .625 | 1.5 | 2.1 | 1.462 | $95 |
| H-RKP12 | KP | 412C | 7.0 | .750 | 2.5 | 3.1 | 2.025 | $110 |
| H-RKP16 | 416C | 1.000 | 4.1 | $115 |
